Automatic Backwashing Valve

Automatic Backwash Valve (BESGO) is a very useful system in the pool system with its features such as extraordinary reliability, operation at low pressure and switching to backwash without stopping the pump.

Besgo automatic valves are pneumatic valves. They work with water or air pressure (actuator source). Actuator working pressures should be between 3.5-6 bar.

Besgo Automatic Valves

BESGO Valve Advantages

• Reliability

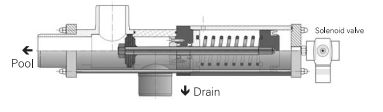

• The automatic backwash valve is opened by water pressure and dosed by the pressure of a an actuator. In the event of a power outage or other problem, the Besgo valve automatically switches itself to filter mode and prevents the pool from being drained unintentionally.


• There is no need to stop the filter pump when it is desired to switch to backwashing.


• It needs low pressure. This feature provides virtually pressure-free backwashing.

Connections MA 1 solenoid valve connection to automatic backwash

A: Connection Filter upper inlet

B: Connection Filter lower inlet

C: Connection to Pump

D: Connection to backwash pipe

E: Connection to the water pipe returning to the pool

Technical Information

Body: PVC-U

Interior: stainless steel V4A

Gaskets: Viton/Teflon

Operating pressure: 3 to 5 bar mains water or compressed air, when not under pressure, the closing is activated by the spring.

Electrical connection: 230 V/50 Hz

It has a wide usage area according to different diameters and flow rates. Depending on the required flow rate, the product of appropriate diameter can be selected and used.

Diameter	Flow
D.50- 1½ D.50- 1½	20
D.63- 1½	30
D.63- 2”	30
D.75-2½	45
D.90-3”	65
D.110-4”	95
D2.140-5”	140

If the piping system is not parallel to the unit, the connection unions can be rotated 90 degrees. It also provides +4 degrees finer adjustment. This guarantees tension-free installation. As an advantage of this feature, we can say that it is possible to adjust it at any time.

Installation

Besgo valves must be attached to the wall on site using pipe clamps. In the automatic backwash system, all connections can be glued to the outside.

Connections to the automatic backwash valve must be made using threaded connections or flanges and must be installed free of any tension.

Connection can be made to the filter for DN40/DN50/DN65.

BESGO can also be mounted on the wall.,

Besgo has 3 types: 5-way, 3-way and 2-way

3-way valve usage is as shown in the image on the side.

Besgo main solenoid valve is closed-

3-way Besgo solenoid open

With 4- way valve, for automatic switchover –swimming pool- solar heating system

With 3 – way valve for automatic switchover of two water attactions

For automatic switch over

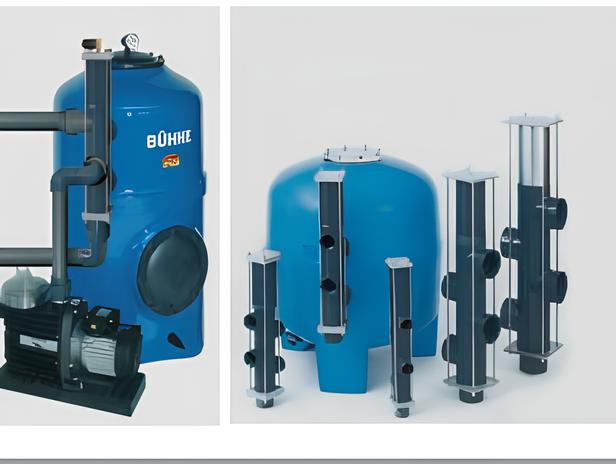

For all sand filters-besgo- valves
